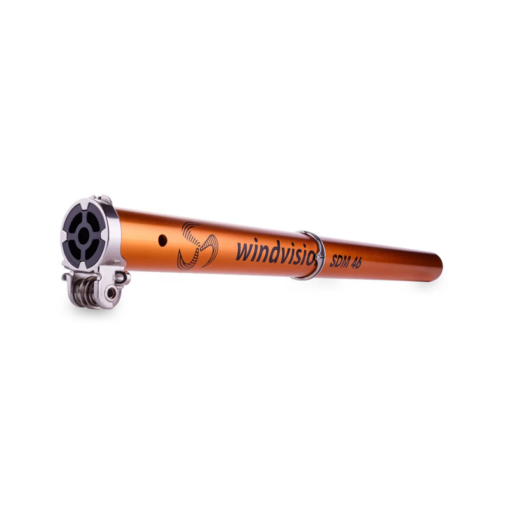

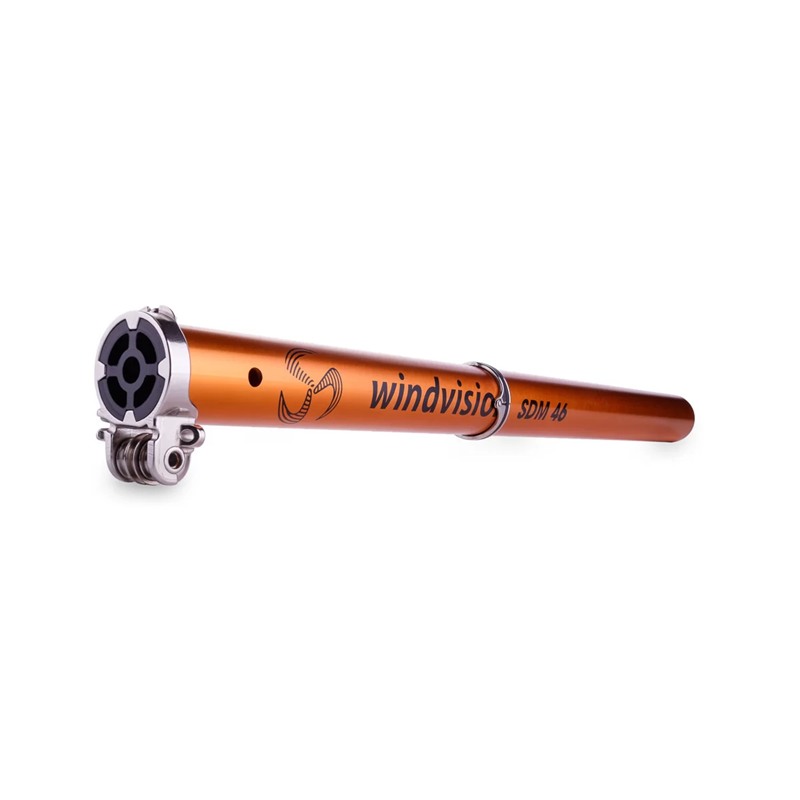

Loftsails Team Edition Mast Extension SDM

We optimize all components for performance windsurfing. Loftsails mast extensions bring reliability and ease of use to a new level.

The extension tube is made using anodized aluminium to prevent saltwater corrosion.

The 3-wheel pulley block is of 100% moulded metal construction. Both SDM and RDM models are compatible with 4-roller tack pulleys. Spectra line is featured as standard.
Specifications

SKU

LS010042010

Description

Team Edition Mast Extension SDM 32

Mast Extension Range

4 – 32 cm

Baseplate Locking Mechanism

U-Pin Push Button

Mast Base Flex

64 %

Mast Top Flex

76 %

Mast Extension Barefoot Friendly Rigging

Yes

Mast Extension Collar

Polyamide «Slide & Lock»

Mast Extension Construction

Aluminium

Mast Extension Downhaul Ratio

8:1 – 3 pulleys

Mast Extension Graphics

Anodized

Mast Extension Maximum Length Setting (cm)

32

Mast Extension Minimal Length Setting

4 cm

Mast Extension Pulley Orientation

90 Degrees

Mast Extension Reinforcement

Stainless Steel

Mast Extension Rope Length

3 cm

Mast Extension Rope Quality

Dyneema 4.0mm

Mast Extension Setting Steps (mm)

20

Mast Extension Wall Thickness

2 mm

Mast Extension Compatability

U-Pin

Mast Surface Finishing

Standard Matte

Operating Weight

0.705 kg

Mast Extension Diameter

SDM

Master Carton Length

54 cm

Master Carton Width

30 cm

Master Carton Height

24 cm

Master Carton QTY

20

HS-Code

95062900

Volume

0.001944 m³

Warranty Term

1 Year Unconditional + 1 Year Conditional
