Sabfoil Front Wing Leviathan 9501350 cm2 – AR 6,68 – T8

SABFOIL-25-221

WING FOIL
PUMP FOIL
SUP FOIL
DOWNWIND

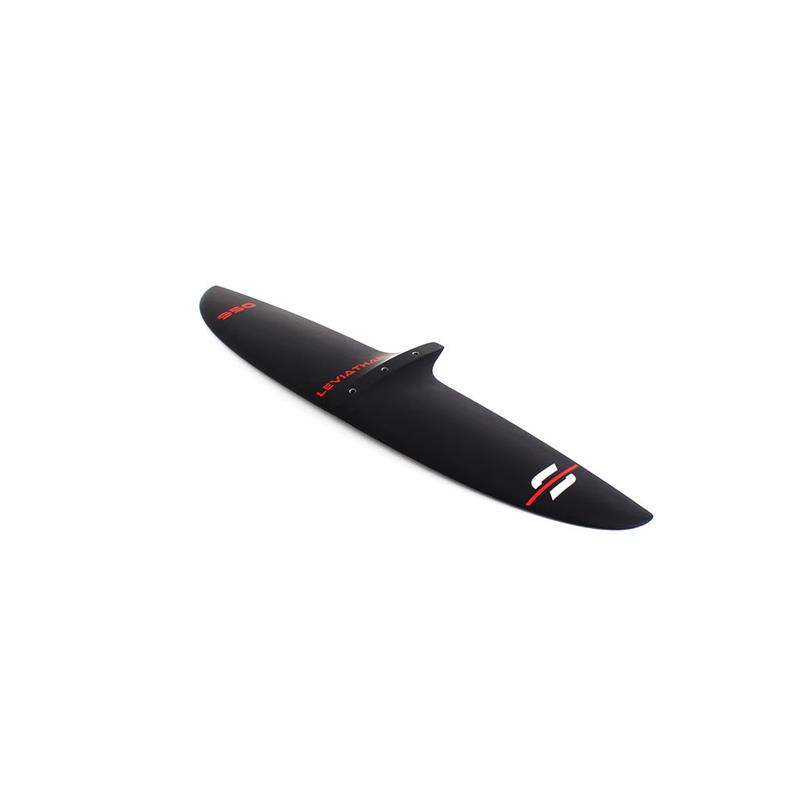

Sabfoil Leviathan 950 | T8 Hydrofoil Front Wing
MAIN SPECS

Surface: 1300 cm2

AR: 6,68

Wingspan: 950 mm

Volume: 1728 cm3

Range Leviathan
Recommended for Easy Riding – Pumping – Dock-Start – Freeride – SUP – Downwind
Take Off Speed 10 – 12 kn
Top End Speed (average 80kg user) 19 – 21 kn
Wing-Fuselage Connection T8

The Leviathan 950 front wing is a highly efficient and versatile option for hydrofoil riders, designed to perform exceptionally well during downwind and wingfoil sessions in medium wind conditions and moderate swell.

With a medium surface area and AR, this front wing strikes the perfect balance between lift, speed, and maneuverability, making it ideal for riders of different experience levels. Whether you’re looking for an efficient ride, or you’re a seasoned rider who wants to push the limits of pumping, the Leviathan 950 front wing is the perfect choice for you.

The WL950/PF is hand sanded to achieve a matte surface with 0-thickness graphics, the SAB Pro Finish, for an elegant Made in Italy product with maximum performance.

Dimensions & Advanced specs
Front Wing – Span
950 mm
Front Wing – Surface
1300 cm2
Front Wing – Root Chord
170 mm
Front Wing – Aspect Ratio
6,68
Front Wing – Maximum Thickness
22,9 mm
Front Wing – Volume
1728 cm3
Front Wing – Weight (ca.)
1230 g
Front Wing – Material
Full Carbon (with core)
Front Wing – Connection
T8
