Leviathan 1350-663-370

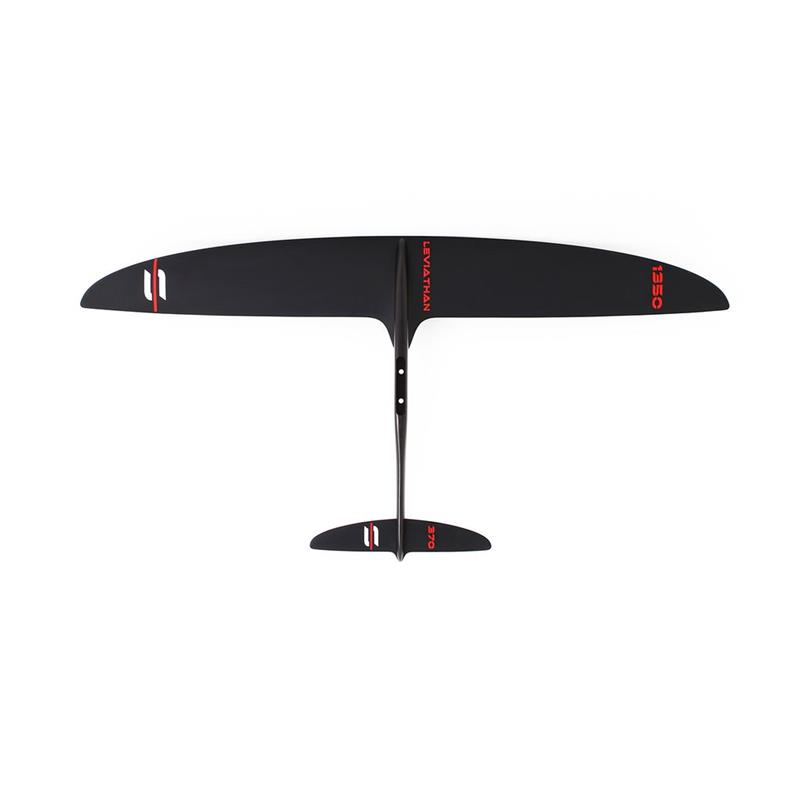

Sabfoil Leviathan hydrofoil glider
WL/1350 – SF/370- F663K

Range
Leviathan
Recommended for
Freeride – SUP – Dock-Start – Pumping – Light Downwind
Take Off Speed
7 – 9 kn
Top End Speed (average 80kg user)
13 – 15 kn
This hydrofoil glider is a must-have for anyone looking to take their pumping and SUP riding to the next level. Designed for low winds and swells, this set offers great performance and versatility, resulting in a fun and reliable option for downwind sessions.

The front wing (WL/1350) boasts a high aspect ratio, resulting in exceptional gliding and efficiency and easy take-off while maintaining a good top-end speed. The flat stabilizer (SF/370) provides excellent maneuverability.

The large size of the front wing makes this glider unsuitable for jumps and freestyle.

Bag and Titanium Quick Release System (Q02K) included

Dimensions & Advanced specs
Front Wing – Span 1350 mm
Front Wing – Surface 1870 cm2
Front Wing – Volume 2423 cm3
Front Wing – Aspect Ratio 9,75
Front Wing – Root Chord 170 mm
Front Wing – Maximum Thickness 22,9 mm
Stabilizer – Span 370 mm
Stabilizer – Surface 195 cm2
Stabilizer – Volume 85 cm3
Stabilizer – Aspect Ratio 7,00
Stabilizer – Root Chord 67,5 mm
Stabilizer – Maximum Thickness 7,3 mm
Fuselage – Length 663 mm
Foil Set – Weight (ca.) 2,51 kg
Content

Sabfoil Leviathan 1350 | T8 Hydrofoil Front Wing x 1
WL/1350

Sabfoil Flat 370 | Hydrofoil Stabilizer x 1
SF/370

Fuselage 663 T8/R8 x 1
F663K

Hardware Kit WL950/WL1150/WL1350/WL1550/WL1750/WM999 x 1
MH163

Hardware Kit S330Y/S370/S376/S399/S400/SRD339/SRD379 x 1
MH107

Hardware Kit F663K/F703K/F753K/F903K/F1003K x 1
MH138
