Sabfoil Glider Leviathan 950-663-370

SABFOIL-25-101

WING FOIL
PUMP FOIL
SUP FOIL
DOWNWIND
Leviathan 950-663-370

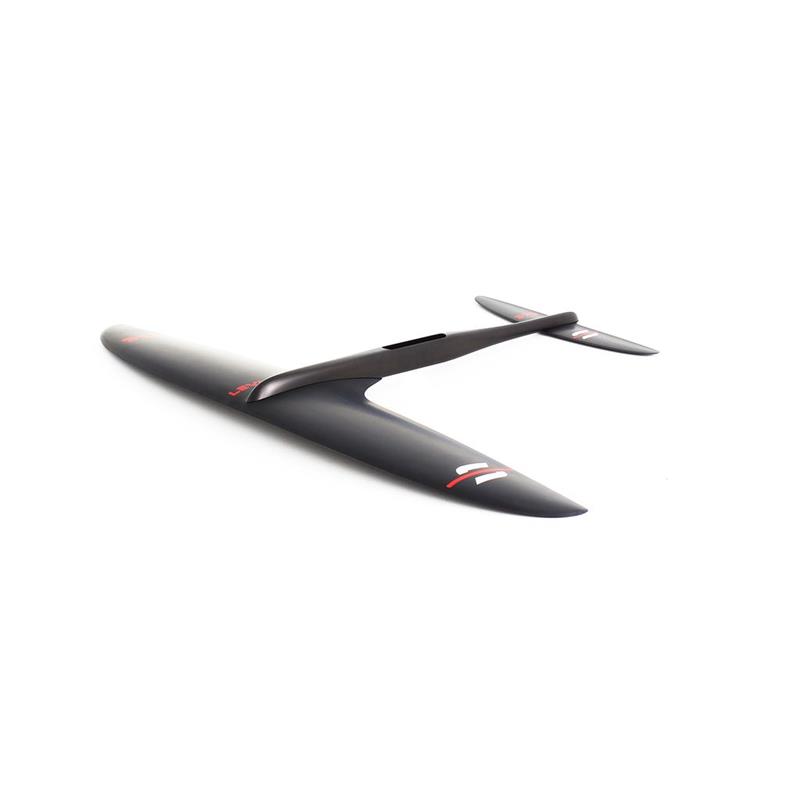

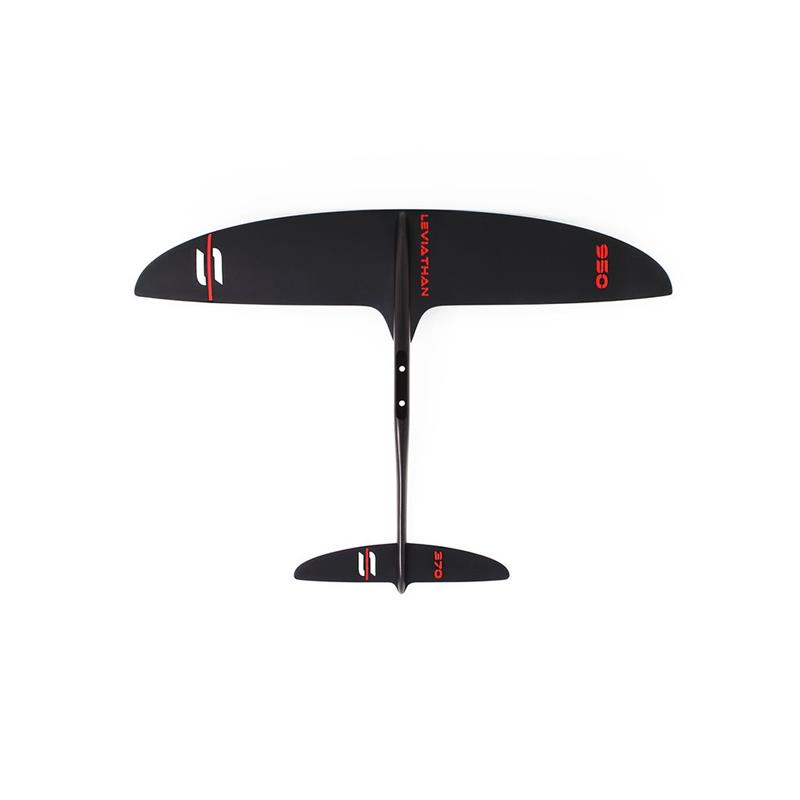

Sabfoil Leviathan hydrofoil glider
WL/950 – SF/370 – F663K

Range
Leviathan
Recommended for
Freeride – SUP – Dock-Start – Pumping – Downwind
Take Off Speed
10 – 12 kn
Top End Speed (average 80kg user)
19 – 21 kn
This hydrofoil set is a reliable and versatile choice for those who want to practice wingfoil and downwind in medium winds and moderate waves.

The front wing (WL/950) has a medium-high AR, which results in good glide ability and efficiency, and the dedicated profile ensures easy starts while still maintaining good top speed. The flat stabilizer (SF/370) provides excellent maneuverability.

Bag and covers sold separately
Dimensions & Advanced specs
Front Wing – Span 950 mm
Front Wing – Surface 1300 cm2
Front Wing – Volume 1728 cm3
Front Wing – Aspect Ratio 6,68
Front Wing – Root Chord 170 mm
Front Wing – Maximum Thickness 22,9 mm
Stabilizer – Span 370 mm
Stabilizer – Surface 195 cm2
Stabilizer – Volume 85 cm3
Stabilizer – Aspect Ratio 7,00
Stabilizer – Root Chord 67,5 mm
Stabilizer – Maximum Thickness 7,3 mm
Fuselage – Length 663 mm
Foil Set – Weight (ca.) 2,21 kg

Content

Sabfoil Kraken 83P | Hydrofoil Mast x 1
MK/83P
Scheda prodotto

Sabfoil Leviathan 950 | T8 Hydrofoil Front Wing x 1
WL/950
Scheda prodotto

Sabfoil Flat 370 | Hydrofoil Stabilizer x 1
SF/370
Scheda prodotto

Fuselage 663 T8/R8 x 1
F663K
Scheda prodotto

Hardware Kit WL950/WL1150/WL1350/WL1550/WL1750/WM999 x 1
MH163
Scheda prodotto

Hardware Kit S330Y/S370/S376/S399/S400/SRD339/SRD379 x 1
MH107
Scheda prodotto

Hardware Kit F663K/F703K/F753K/F903K/F1003K x 1
MH138
Scheda prodotto

Range
Leviathan
Recommended for
Freeride – SUP – Dock-Start – Pumping – Downwind
Take Off Speed
10 – 12 kn
Top End Speed (average 80kg user)
19 – 21 kn
