Sabfoil Glider Leviathan 950-703-425

SABFOIL-25-104

WING FOIL
DOWNWIND
Leviathan Easy-Riding 950-703-425

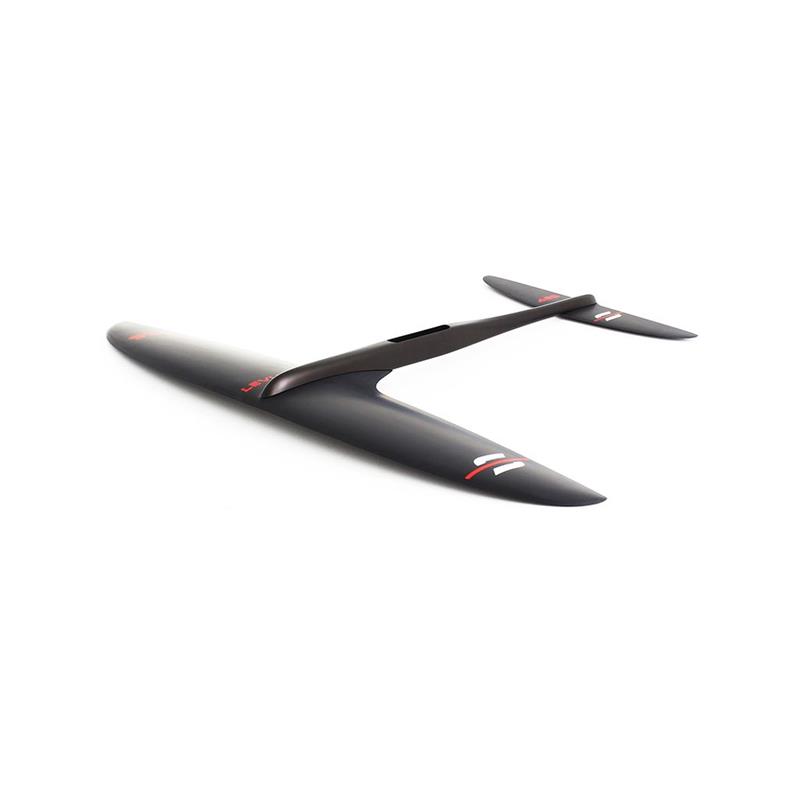

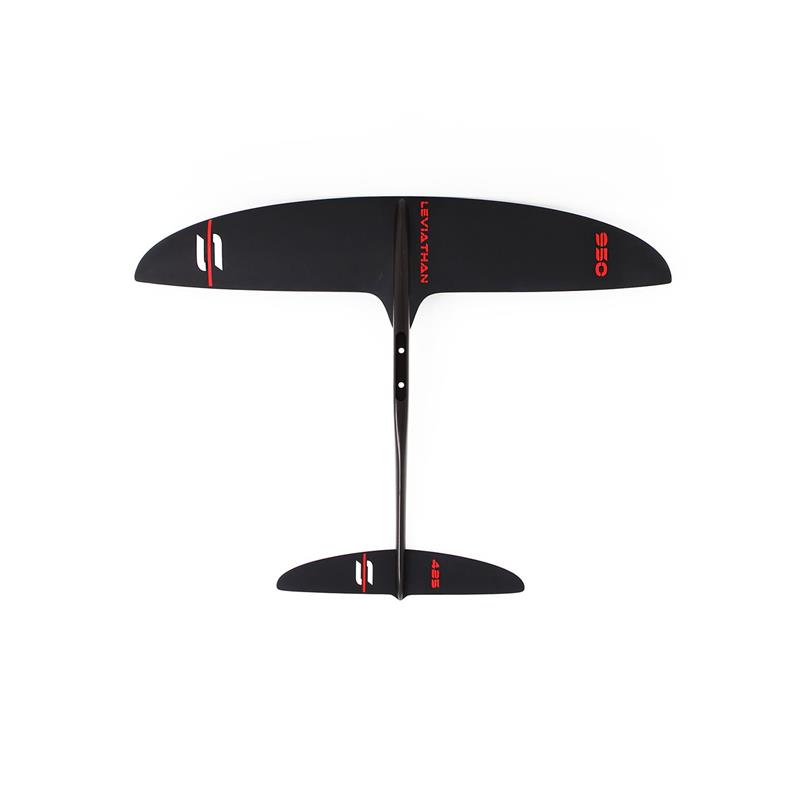

Sabfoil Leviathan Easy-Riding hydrofoil glider
WL/950 – SF/425 – F703K

Leviathan Easy-Riding 950-703-425 specs

Range
Leviathan
Recommended for
Easy Riding – Freeride – Low Downwind
Take Off Speed
10 – 12 kn
Top End Speed (average 80kg user)
19 – 21 kn
This hydrofoil set is a reliable and versatile choice for those who want to practice wingfoil, both downwind and freeride, in light winds and low swells. It is also ideal for novice riders or those who simply want to enjoy a leisurely ride.

The front wing (WL/950) has a medium-high AR, which results in good glide ability and efficiency, and the dedicated profile ensures easy starts while still maintaining good top speed. The flat shape stabilizer (SF/425) provides optimal control without sacrificing maneuverability.

Bag and Titanium Quick Release System (Q02K) included

The size and aim of this front wing make it unsuitable for jumps and freestyle, as well as its use paired with Piuma fuselages and masts.

Dimensions & Advanced specs
Front Wing – Span 950 mm
Front Wing – Surface 1300 cm2
Front Wing – Volume 1728 cm3
Front Wing – Aspect Ratio 6,68
Front Wing – Root Chord 170 mm
Front Wing – Maximum Thickness 22,9 mm
Stabilizer – Span 430 mm
Stabilizer – Surface 240 cm2
Stabilizer – Volume 102 cm3
Stabilizer – Aspect Ratio 7,70
Stabilizer – Root Chord 68 mm
Stabilizer – Maximum Thickness 7,5 mm
Fuselage – Length 703 mm
Foil Set – Weight (ca.)

Content
Sabfoil Leviathan 950 | T8 Hydrofoil Front Wing x 1
WL/950

Sabfoil Flat 425 | Hydrofoil Stabilizer x 1
SF/425

Fuselage 703 T8/R8 x 1
F703K

Hardware Kit WL950/WL1150/WL1350/WL1550/WL1750/WM999 x 1
MH163

Hardware Kit S325/S355/S375/S380/S395/S425/S430/S450/S480/S483 x 1
MH108

Hardware Kit F663K/F703K/F753K/F903K/F1003K x 1
MH138

Range
Leviathan
Recommended for
Easy Riding – Freeride – Low Downwind
Take Off Speed
10 – 12 kn
Top End Speed (average 80kg user)
19 – 21 kn
