Sabfoil Kit Leviathan 1350-663-370/73P

SABFOIL-25-114

PUMP FOIL
SUP FOIL
DOWNWIND
Foil Set Leviathan 1350-663-370/73P

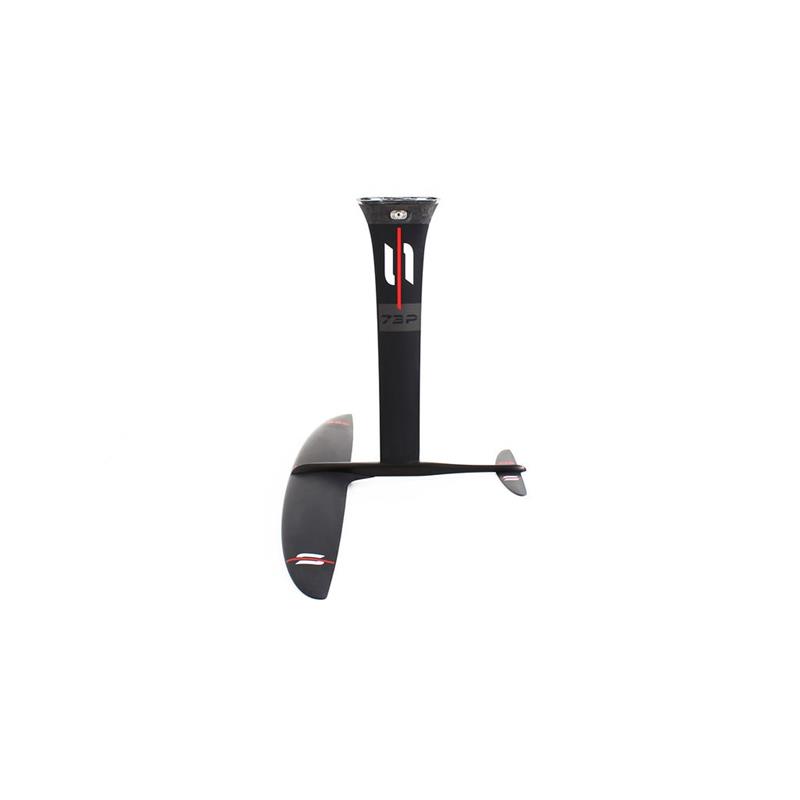

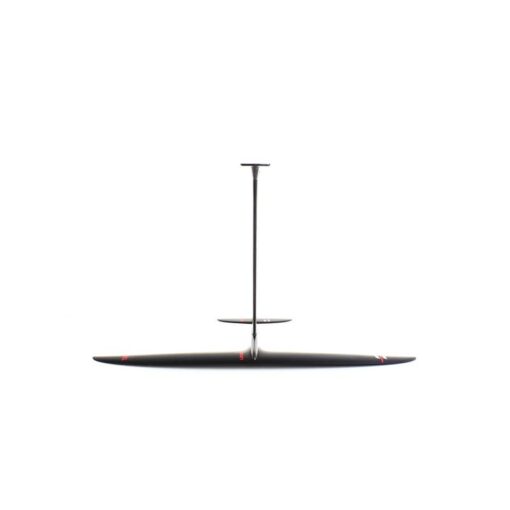

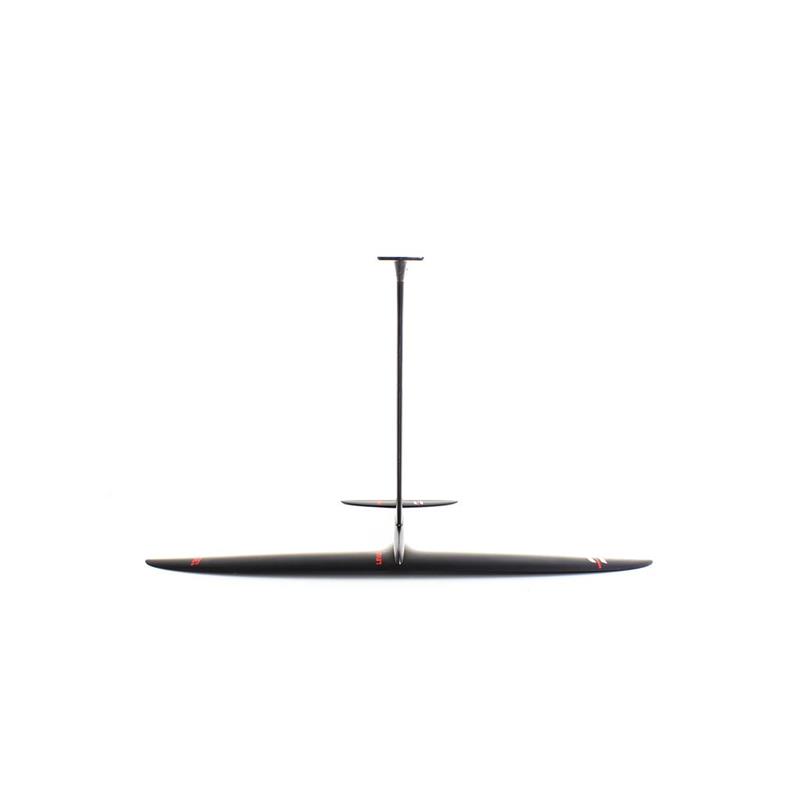

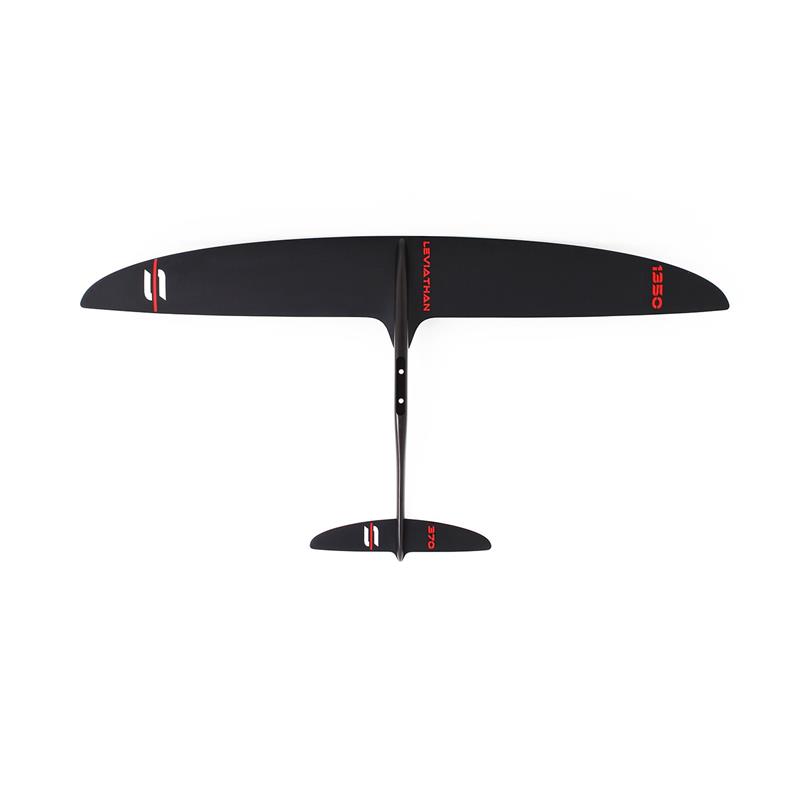

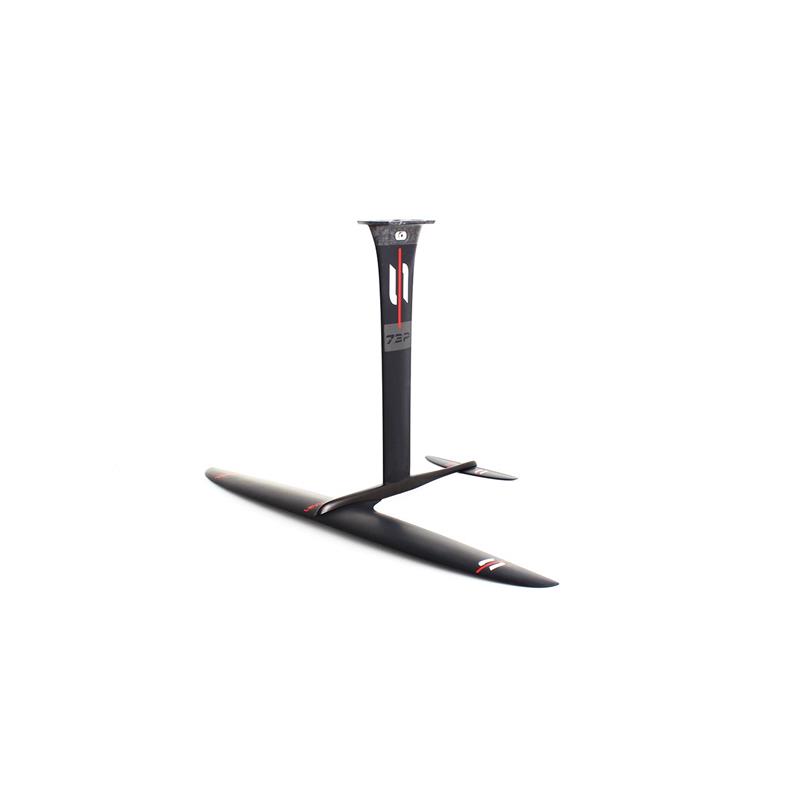

Sabfoil Leviathan hydrofoil set
MK/73P – WL/1350- SF/370- F663K – CP02K/Ti

Bag and Q02K included

Range
Leviathan
Recommended for
Freeride – SUP – Dock-Start – Pumping – Light Downwind
Take Off Speed
7 – 9 kn
Top End Speed (average 80kg user)
13 – 15 kn
This hydrofoil set is a must-have for anyone looking to take their pumping and SUP riding to the next level. Designed for low winds and swells, this set offers great performance and versatility, resulting in a fun and reliable option for downwind sessions.

The front wing (WL/1350) boasts a high aspect ratio, resulting in exceptional gliding and efficiency and easy take-off while maintaining a good top-end speed. The stiff mast (MK/73P) reduces bending and torsion for maximum stability and control also during pumping sessions. The flat stabilizer (SF/370) provides excellent maneuverability.

The large size of the front wing makes this set unsuitable for jumps and freestyle.

Bag and Titanium Quick Release System (Q02K) included

Dimensions & Advanced specs
Front Wing – Span 1350 mm
Front Wing – Surface 1870 cm2
Front Wing – Volume 2423 cm3
Front Wing – Aspect Ratio 9,75
Front Wing – Root Chord 170 mm
Front Wing – Maximum Thickness 22,9 mm
Stabilizer – Span 370 mm
Stabilizer – Surface 195 cm2
Stabilizer – Volume 85 cm3
Stabilizer – Aspect Ratio 7,00
Stabilizer – Root Chord 67,5 mm
Stabilizer – Maximum Thickness 7,3 mm
Fuselage – Length 663 mm
Mast – Height 730 mm
Mast – Board Connection Carbon Plate
Foil Set – Weight (ca.) 4,58 kg
Content

Sabfoil Kraken 73P | Hydrofoil Mast x 1
MK/73P

Sabfoil Leviathan 1350 | T8 Hydrofoil Front Wing x 1
WL/1350

Sabfoil Flat 370 | Hydrofoil Stabilizer x 1
SF/370

Fuselage 663 T8/R8 x 1
F663K

Sabfoil Carbon Rail Plate with Titanium Inserts x 1
CP02K/Ti

Hardware Kit WL950/WL1150/WL1350/WL1550/WL1750/WM999 x 1
MH163

Hardware Kit S330Y/S370/S376/S399/S400/SRD339/SRD379 x 1
MH107

Hardware Kit F663K/F703K/F753K/F903K/F1003K x 1
MH138

Spare Titanium Pin and Shims for Q02K x 1
MHQ02

Foam Pads for Plate x 1
MH144

Allen Keys, Torx Keys and Lithium Grease x 1
MH137

Hardware Kit Carbon Plate to Rail Board x 1
MH160

Shim Set for Fuselages -0,5°/-1°/-1,5°/-2°/-2,5°/-3° x 1
MHW060

Sabfoil Hydrofoil Bag – XL x 1
MA013

Range
Leviathan
Recommended for
Freeride – SUP – Dock-Start – Pumping – Light Downwind
Take Off Speed
7 – 9 kn
Top End Speed (average 80kg user)
13 – 15 kn
