Sabfoil Kit Razor PRO 675-603-325/73MK/73 – WRP/675 – F603K – SF/325 – CP02K/Ti

SABFOIL-25-161

WING FOIL
SURF FOIL
DOWNWIND
Foil Set Razor PRO 675-603-325/73

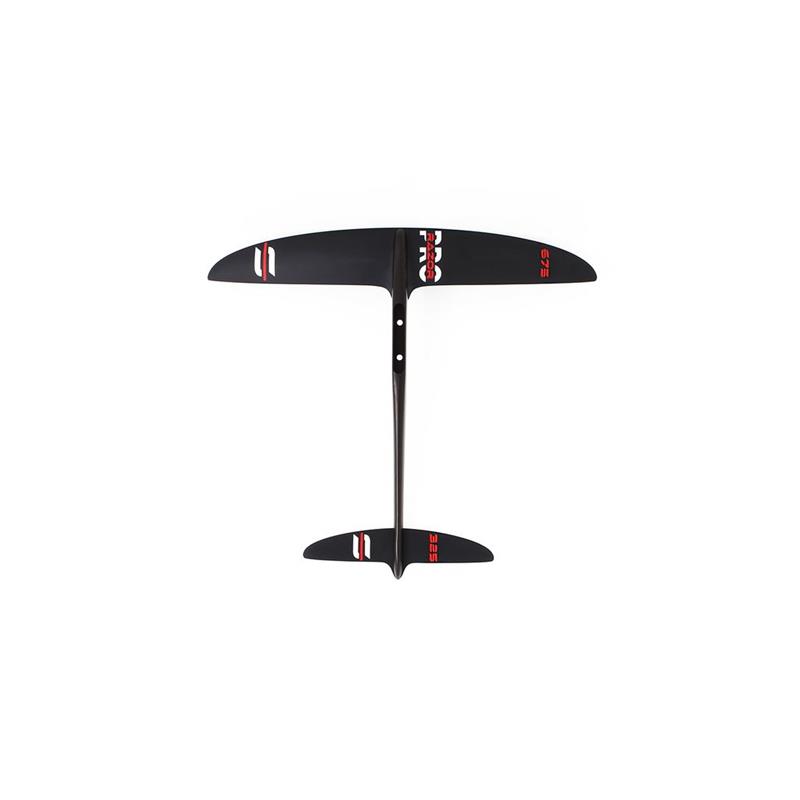

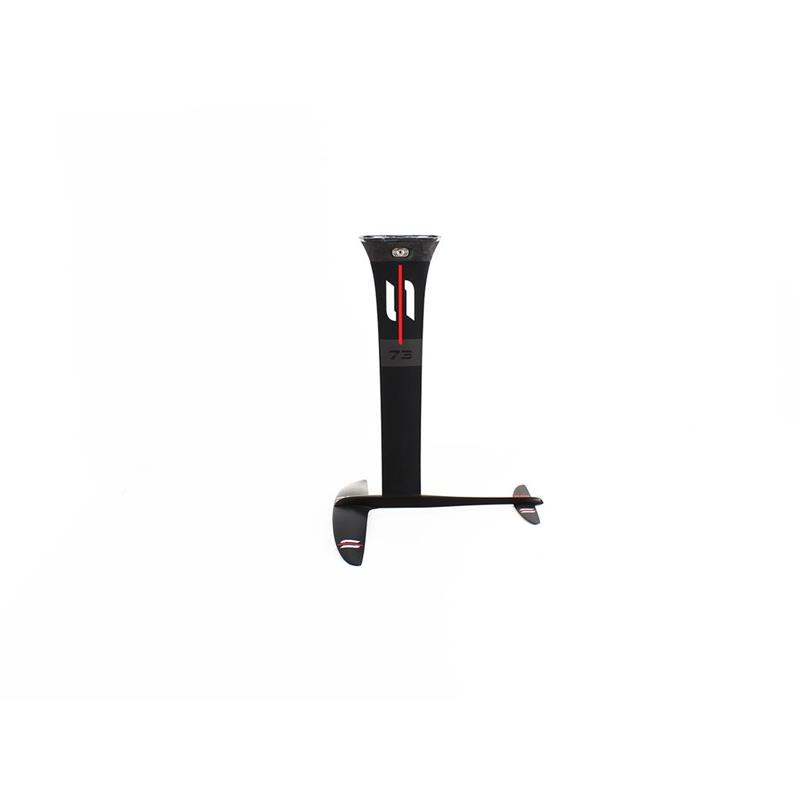

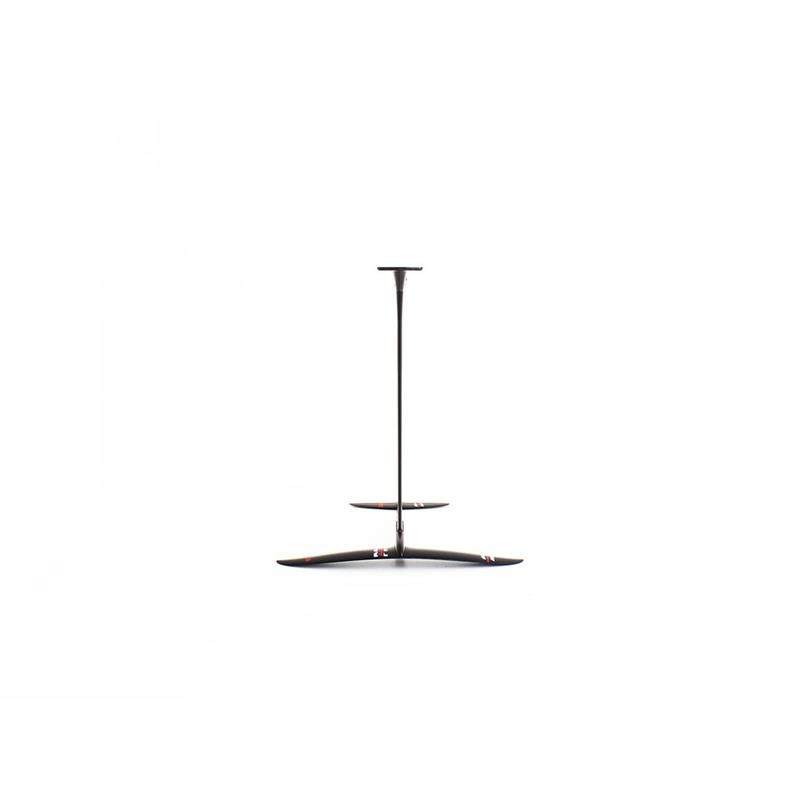

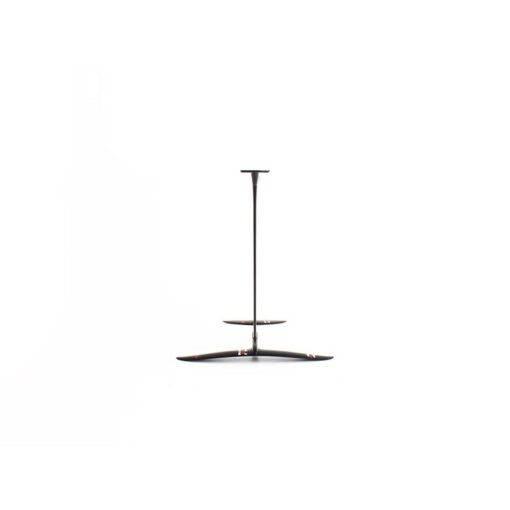

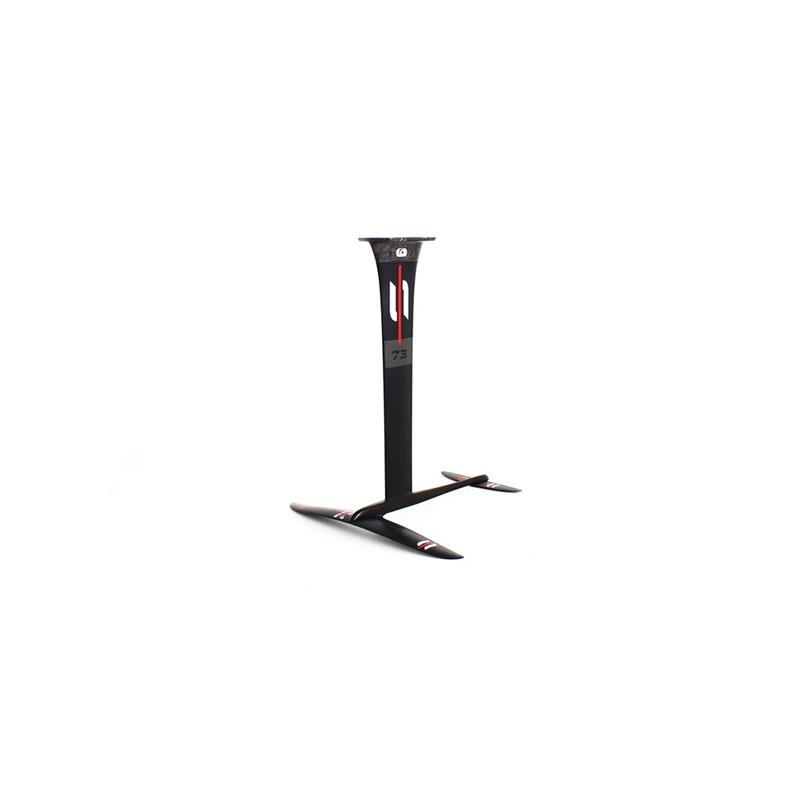

Sabfoil Razor PRO hydrofoil set

MK/73 – WRP/675- SF/325 – F603K – CP02K/Ti

Bag and Q02K included
Foil Set Razor PRO 675-603-325/73 specs
TOP SPEED
LIFT
GLIDE
MANEUVERABILITY
PUMPING
Range Razor PRO
Recommended for Fast Downwind – Fast Freeride – Surf – Wave – Prone Surf
Take Off Speed 16 – 18 kn
Top End Speed (average 80kg user) 25 – 27 kn

This hydrofoil set is an excellent choice for downwind riding in medium-strong wind conditions.

The front wing (WRP/675) features a high aspect ratio and dedicated profile for exceptional gliding efficiency. It is also easy to pump to transition from wave to wave. The broad speed range allows for early take-off, ensuring a lot of fun for riders of all levels. The mast (MK/73) has a balanced profile, providing a smooth and fast ride without sacrificing stiffness. The flat stabilizer (SF/325) gives excellent maneuverability.

Bag and Titanium Quick Release System (Q02K) included

Dimensions & Advanced specs
Front Wing – Span 680 mm
Front Wing – Surface 550 cm2
Front Wing – Volume 457 cm3
Front Wing – Aspect Ratio 8,40
Front Wing – Root Chord 100 mm
Front Wing – Maximum Thickness 14,1 mm
Stabilizer – Span 325 mm
Stabilizer – Surface 155 cm2
Stabilizer – Volume 61 cm3
Stabilizer – Aspect Ratio 7,05
Stabilizer – Root Chord 58,9 mm
Stabilizer – Maximum Thickness 6,4 mm
Fuselage – Length 603 mm
Mast – Height 730 mm
Mast – Board Connection Carbon Plate
Foil Set – Weight (ca.) 3,28 kg
Content
MK/73K x 1
Sabfoil Razor PRO 675 | T6 Hydrofoil Front Wing x 1
WRP/675

Sabfoil Flat 325 | Hydrofoil Stabilizer x 1
SF/325

Fuselage 603 T6/R8 x 1
F603K

Sabfoil Carbon Rail Plate with Titanium Inserts x 1
CP02K/Ti

Hardware Kit WR680/780/820/880/980/WRP775/825/875 x 1
MH161

Hardware Kit S325/S355/S375/S380/S395/S425/S430/S450/S480/S483 x 1
MH108

Hardware Kit F603K/F653K/F713K/F1000RD/F1001RD x 1
MH139

Spare Titanium Pin and Shims for Q02K x 1
MHQ02

Foam Pads for Plate x 1
MH144

Allen Keys, Torx Keys and Lithium Grease x 1
MH137

Hardware Kit Carbon Plate to Rail Board x 1
MH160

Shim Set for Fuselages -0,5°/-1°/-1,5°/-2°/-2,5°/-3° x 1
MHW060

Sabfoil Hydrofoil Bag L x 1
MA008
