Sabfoil Kit Razor PRO 975-653-370/73MK/73 – WRP/975 – F653K – SF/370 – CP02K/Ti

SABFOIL-25-181

WING FOIL
SURF FOIL
DOWNWIND
Foil Set Razor PRO 975-653-370/73

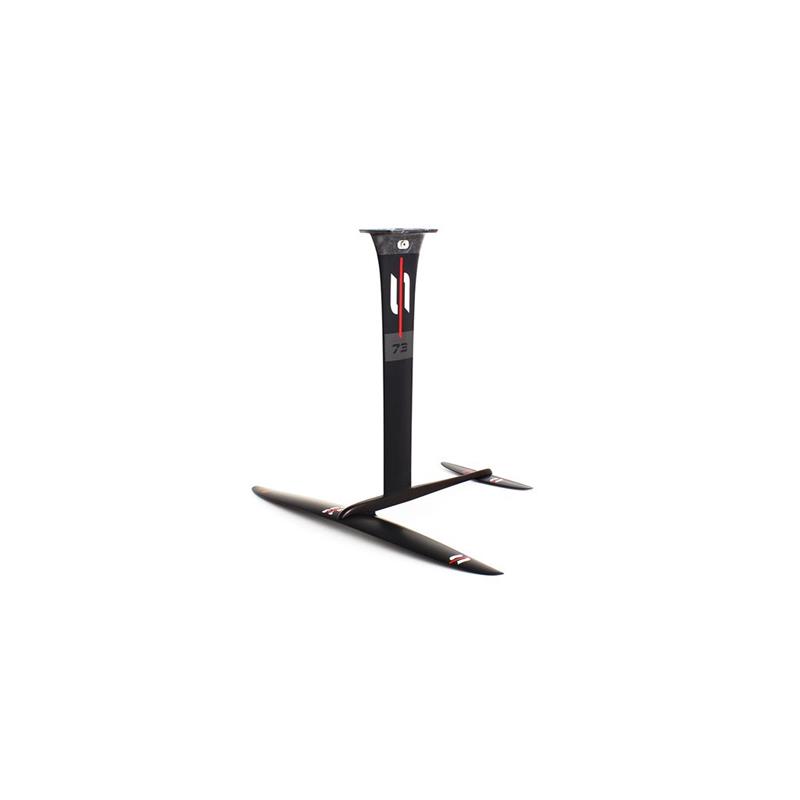

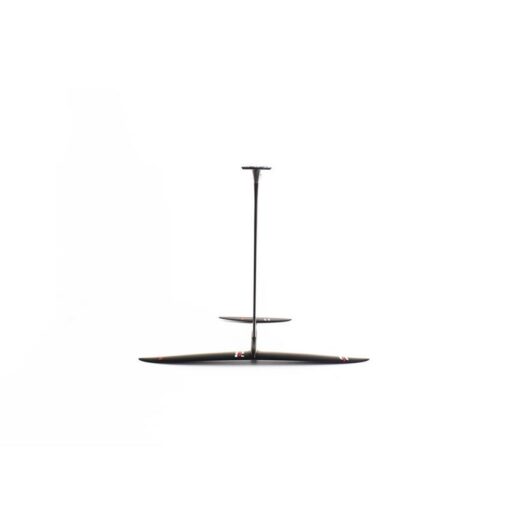

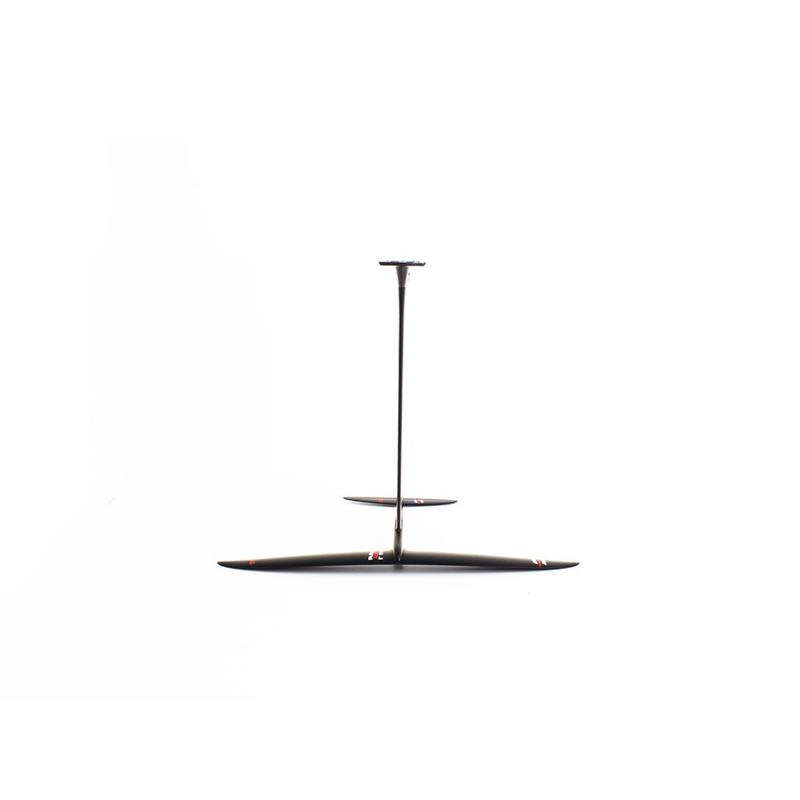

Sabfoil Razor PRO hydrofoil set

MK/73 – WRP/975- SF/370 – F653K – CP02K/Ti

Bag and Q02K included
Foil Set Razor PRO 975-653-370/73 specs
TOP SPEED
LIFT
GLIDE
MANEUVERABILITY
PUMPING
Range Razor PRO
Recommended for Downwind – Freeride – Pump Pro – Surf – Wave – Prone Surf
Take Off Speed 10 – 12 kn
Top End Speed (average 80kg user) 22 – 24 kn

The KRP/975-653-370/73 is a very versatile surf foil kit that is perfect for medium to low wave conditions, but still maintains a high level of performance while also facilitating pumping when needed.

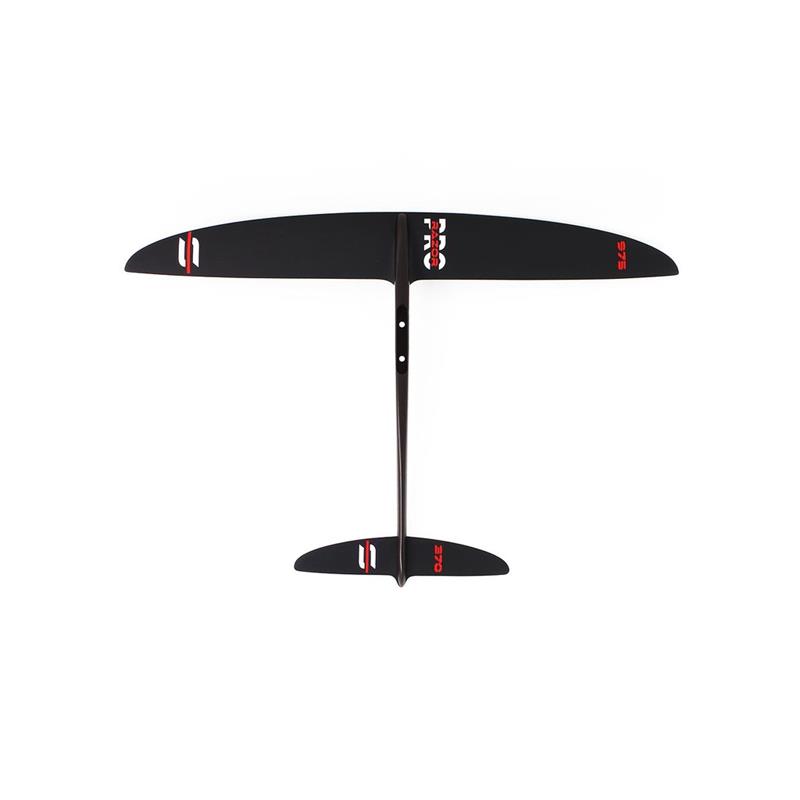

The Razor PRO 975 front wing is designed to maximize your performance in the waves and to be able to ride faster downwind while handling any acceleration. You’ll experience lightning-fast response and tighter turns, while maintaining stability and drive even during the most radical tip breaches or the return from wave lip to base.

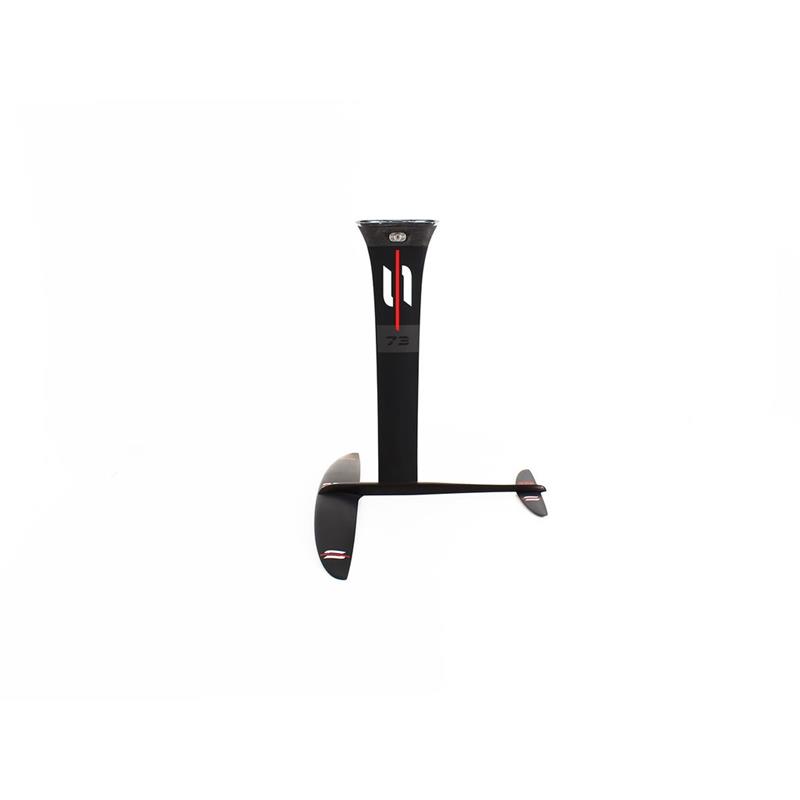

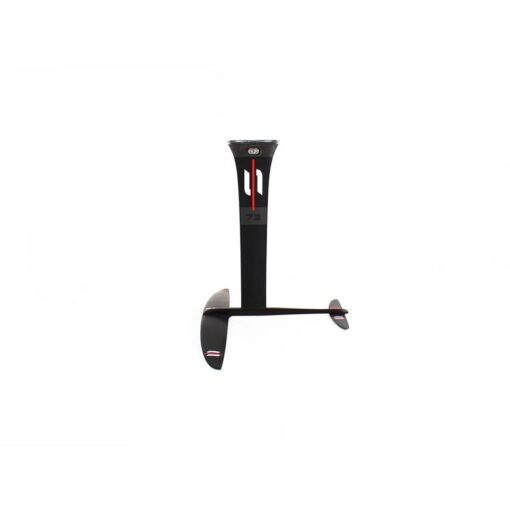

The mast (MK/73) has a balanced profile, providing a smooth ride without sacrificing stiffness.

This foil set comes with the SF/370 flat stabilizer, that will allow you to engage waves with extreme maneuverability.

***Parts made of high-modulus carbon are super stiff and high-performing, so they are also very fragile and susceptible to impacts. FOR THIS REASON, THE PIUMA SERIES IS NOT SUITABLE FOR HARD JUMPS AND FREESTYLE, AND ITS USE FOR THESE KINDS OF ACTIVITIES CAN BE DANGEROUS, AND SO NOT ALLOWED OR COVERED BY WARRANTY.

Dimensions & Advanced specs
Front Wing – Span 980 mm
Front Wing – Surface 942 cm2
Front Wing – Volume 860,5 cm3
Front Wing – Aspect Ratio 10,20
Front Wing – Root Chord 119 mm
Front Wing – Maximum Thickness 16,77 mm
Stabilizer – Span 370 mm
Stabilizer – Surface 195 cm2
Stabilizer – Volume 85 cm3
Stabilizer – Aspect Ratio 7,00
Stabilizer – Root Chord 67,5 mm
Stabilizer – Maximum Thickness 7,3 mm
Fuselage – Length 653 mm
Mast – Height 730 mm
Mast – Board Connection Carbon Plate
Foil Set – Weight (ca.)
Content
Sabfoil Kraken 73 | Hydrofoil Mast x 1
MK/73

Sabfoil Razor PRO 975 | T6 Hydrofoil Front Wing x 1
WRP/975

Sabfoil Flat 370 | Hydrofoil Stabilizer x 1
SF/370

Fuselage 653 T6/R8 x 1
F653K

Sabfoil Carbon Rail Plate with Titanium Inserts x 1
CP02K/Ti

Hardware Kit WR680/780/820/880/980/WRP775/825/875 x 1
MH161

Hardware Kit S330Y/S370/S376/S399/S400/SRD339/SRD379 x 1
MH107

Hardware Kit F603K/F653K/F713K/F1000RD/F1001RD x 1
MH139

Spare Titanium Pin and Shims for Q02K x 1
MHQ02

Foam Pads for Plate x 1
MH144

Allen Keys, Torx Keys and Lithium Grease x 1
MH137

Hardware Kit Carbon Plate to Rail Board x 1
MH160

Shim Set for Fuselages -0,5°/-1°/-1,5°/-2°/-2,5°/-3° x 1
MHW060

Sabfoil Hydrofoil Bag L x 1
MA008
