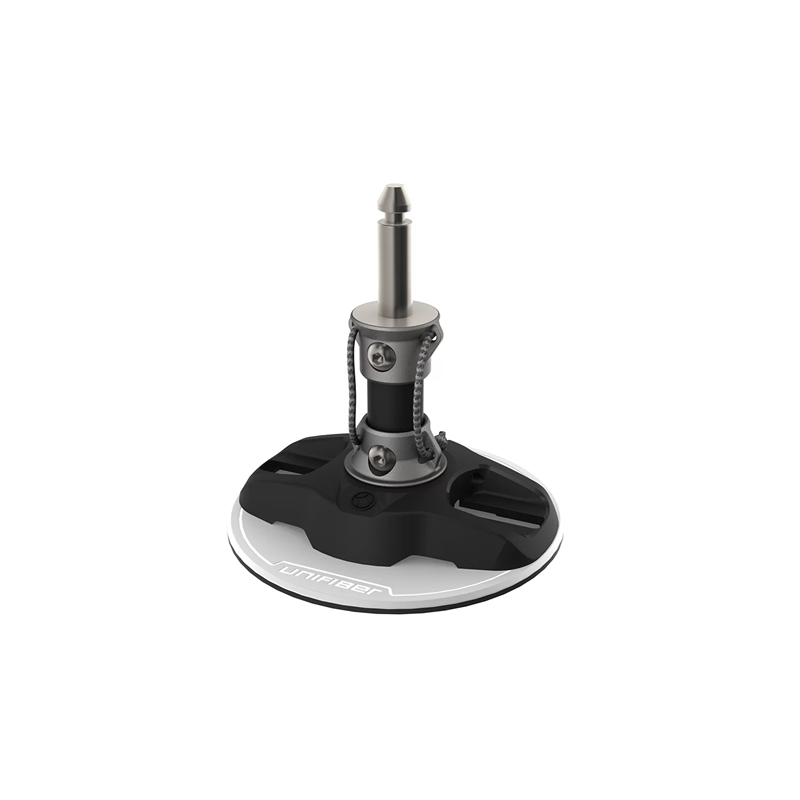

Unifiber Baseplate Tendon Joint Essentials (U-Pin) 2024

Description

The Essentials baseplate serves as a foundation of our baseplate range. Simple and reliable, the baseplate keeps the number of parts to a minimum, reducing the chances for any part to fail even in extreme conditions.

At its core, a high-quality TPU tendon is anchored by two large-diameter custom bolts, designed for easy tendon replacement without bolt overturning.

The U-Pin section on top is a single solid stainless-steel piece, ensuring lasting durability.

Crafted from tough POK engineering plastic, the baseplate is ergonomic and easy to unscrew, even after intense sessions. The disk, also made of POK material, features an EVA layer and guiding knob for excellent grip on the board.

For added safety, both the top and bottom parts of the baseplate are connected with a Spectra safety rope, capable of withstanding up to 650 kg of a breakload.

We believe that the majority of windsurfers would agree ? a strong and secure baseplate is a good baseplate. Everything else is secondary.

–
Specifications

SKU

UF060011000

Description

Baseplate Tendon Joint Essentials (U-Pin)

Baseplate Disconnection Safety

Dyneema Rope

Baseplate Disk Sliding Blocker

Yes

Baseplate EVA Covered Disk

Yes

Baseplate Height

78 mm

Baseplate Joint

Tendon

Baseplate Locking Mechanism

U-Pin Push Button

Baseplate Tendon Outside Diameter

20mm mm

Baseplate U-pin Construction

Fully Integrated

Board Connection Method

Single M8 Bolt + Nut

Operating Weight

0.275 kg

Master Carton Length

60 cm

Master Carton Width

30 cm

Master Carton Height

24 cm

Master Carton QTY

50

HS-Code

95062900

Volume

0.000864 m³

Warranty Term

1 Year Unconditional + 1 Year Conditional
