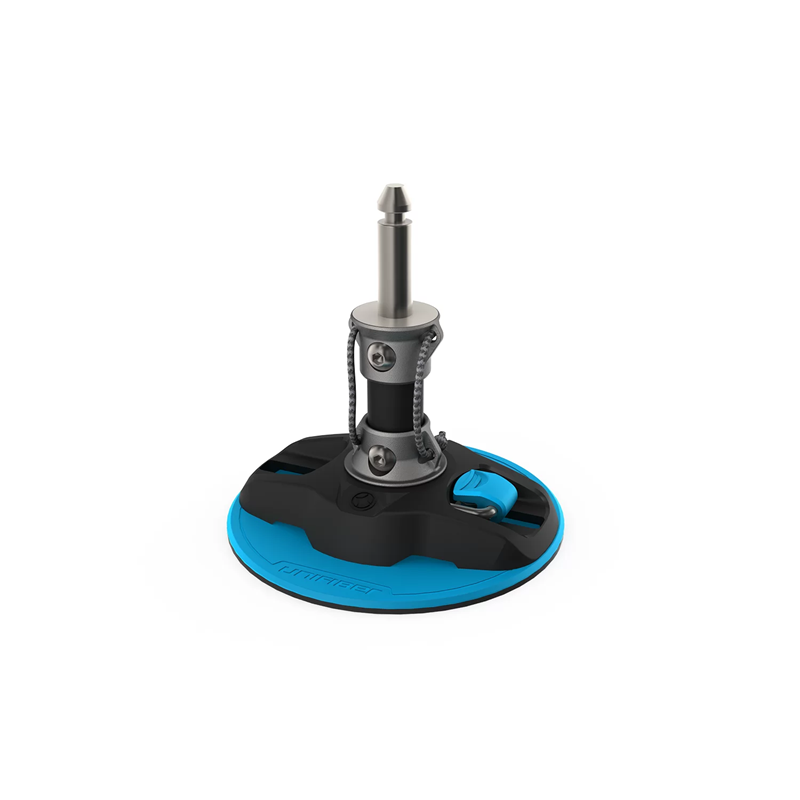

Unifiber Baseplate Tendon Joint HD (U-Pin) V2 2024

Description

Designed for windsurfers who relentlessly push their gear to the limits, the HD Baseplate is built to withstand the toughest challenges.

The stainless steel components create an uninterrupted link from the T-nut to the extension, ensuring a strong connection even if the plastic parts wear out.

In the baseplates’ center, a high-quality TPU tendon is secured by two large-diameter custom bolts, designed for easy tendon replacement without overtorquing.

The U-Pin section on top is a single solid stainless-steel piece, ensuring lasting durability.

Molded from tough POK engineering plastic, the baseplate is ergonomic and easy to unscrew, even after intense sessions. The baseplate also features a push-button that secures two sliding pins. Activating it releases the join from the base, allowing you to keep it attached to your board for convenient transport and storage.

The disk, also made of POK material, features an EVA layer and guiding knob for excellent grip on the board.

For added safety, both the top and bottom parts of the baseplate are connected with a Spectra safety rope, capable of withstanding up to 650 kg of a breakload.

–
Specifications

SKU

UF060011010

Description

Baseplate Tendon Joint HD (U-Pin) V2

Baseplate Disconnection Safety

Dyneema Rope

Baseplate Disk Sliding Blocker

Yes

Baseplate EVA Covered Disk

Yes

Baseplate Height

78 mm

Baseplate Joint

Tendon

Baseplate Locking Mechanism

U-Pin Push Button

Baseplate Tendon Outside Diameter

20mm mm

Baseplate U-pin Construction

Fully Integrated

Board Connection Method

Single M8 Bolt + Nut

Operating Weight

0.308 kg

Master Carton Length

60 cm

Master Carton Width

30 cm

Master Carton Height

24 cm

Master Carton QTY

50

HS-Code

95062900

Volume

0.000864 m³
