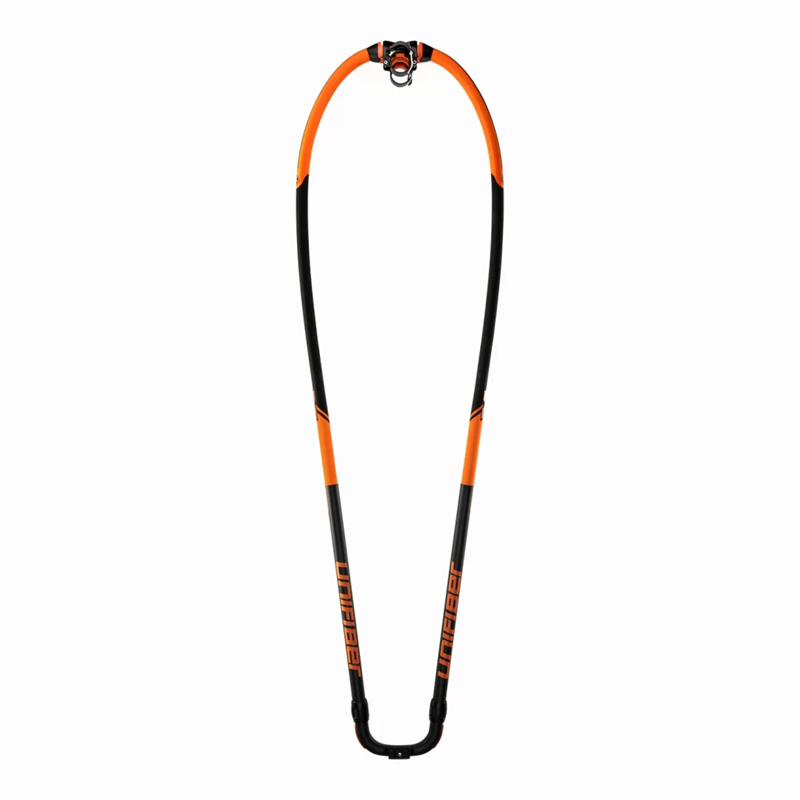

Unifiber Carbon Elite Monocoque V2 Outside Wide Tail 2024

Description

Elite carbon booms are custom manufactured from the highest grade pre-preg carbon. These designs are targeted at the professional user searching for the greatest stiffness and lightest weight.

Short 140 model has the thinnest grip diameter in the range and a narrow profile to better suit compact sail profiles found in Bump & Jump and Wave sails.

Sizes 190 and 220 are fitted with larger diameter outside tails that minimizes the back-end swing weight and keep the rig under better control. Those tails have a wider outline to work better with modern race sails and not distort their profiles.

All Elite carbon booms feature the all-new «Configure Me» Modular Boom Head to fully benefit from the advantages of a modular boom system. The modular boom head fits all «Configure Me» Boom Bodies. Swapping the boom head is effortless and takes seconds – no tools required. For example: with 1 boom head, 3 boom bodies and 1 tail you have 3 high-performance booms of different sizes. This makes the most of your available budget, storage space, baggage allowance.

Be part of the future! Enjoy light weight and top-notch performance. Benefit from «Configure Me» modular options to combine, renew and upgrade components as required.

–
Specifications

SKU

UF012020260

Description

Carbon Elite Monocoque V2 190-240 Outside Wide Tail

Boom Length Range

190-240 cm

Boom Body Grip Diameter

29×30 mm

Boom Body Maximum Inner Width

50.5 cm

Boom Body Maximum Outer Diameter

33 mm

Boom Body Shape

C-shape

Boom Body Tube Wall Thickness

2.3 mm

Boom Grip Graphics

Inlaid & Embossed

Boom Head Axial Movement

Yes

Boom Head Connection

Configure Me Quick Release

Boom Head Mast Diameter Compatibility

SDM and RDM adapters included

Boom High

0

Boom Low

0

Boom Material

Carbon Prepreg 100%

Boom Stiffness

*******

Boom Tail Diameter

38 mm

Boom Tail Inner Width

17 cm

Boom Tail Locking System

Double Pin Locks mounted on Boom Tail

Boom Tail System

Pulley

Boom Tube Construction

Monocoque Boom Body

Operating Weight

2.95 kg

Outhaul System Compatibility

Blue (CL111/CL244)

Master Carton Length

212 cm

Master Carton Width

68 cm

Master Carton Height

15 cm

Master Carton QTY

6

HS-Code

95062900

Volume

0.03604 m³
