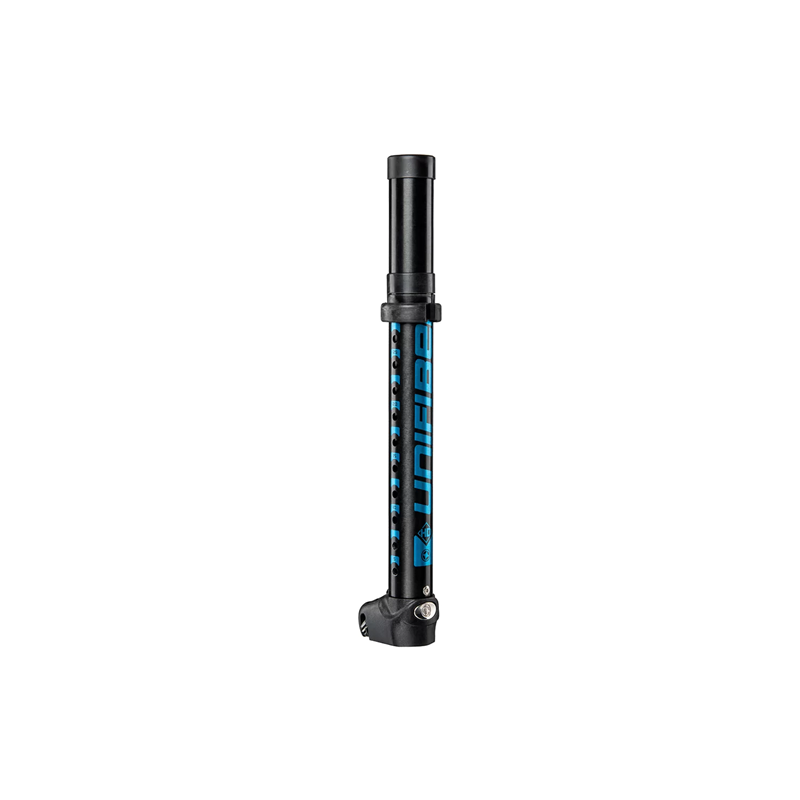

Unifiber HD SDM Aluminium Mast Extension (U-Pin) 2024

Description

When your sail requires solid downhaul tension, HD SDM extension is the right tool for the job.

The base itself is made out of high-quality polyamide to withstand the high-tension downhauling. Featuring a 3-roll pulley, the extension decreases the effort required from the user to downhaul even a slalom sail.

The functional length can be adjusted with one hand using the open-and-slide-collar

–
Specifications

SKU

UF030035065

Description

HD SDM Aluminium Mast Extension (U-Pin) 30

Mast Extension Range

10 – 30 cm

Baseplate Locking Mechanism

U-Pin Push Button

Mast Extension Barefoot Friendly Rigging

Yes

Mast Extension Collar

Polyamide Hinged

Mast Extension Construction

Aluminium

Mast Extension Downhaul Ratio

8:1 – 3 pulleys

Mast Extension Graphics

Anodized

Mast Extension Maximum Length Setting (cm)

30

Mast Extension Minimal Length Setting

10 cm

Mast Extension Outside Tube Diameter

44 mm

Mast Extension Pulley Orientation

0 Degrees

Mast Extension Reinforcement

Aluminium

Mast Extension Rope Compatibility

3.8mm – 4.0mm

Mast Extension Rope Length

200 cm

Mast Extension Rope Quality

Pre-stretched Polyester 4.0mm

Mast Extension Setting Steps (mm)

25

Mast Extension Wall Thickness

1.5 mm

Mast Extension Compatability

U-Pin

Mast Extensions Pulley Diameter

19 mm

Operating Weight

0.515 kg

Mast Extension Diameter

SDM

Master Carton Length

50 cm

Master Carton Width

50 cm

Master Carton Height

30 cm

Master Carton QTY

50

HS-Code

95062900

Volume

0.0015 m³
