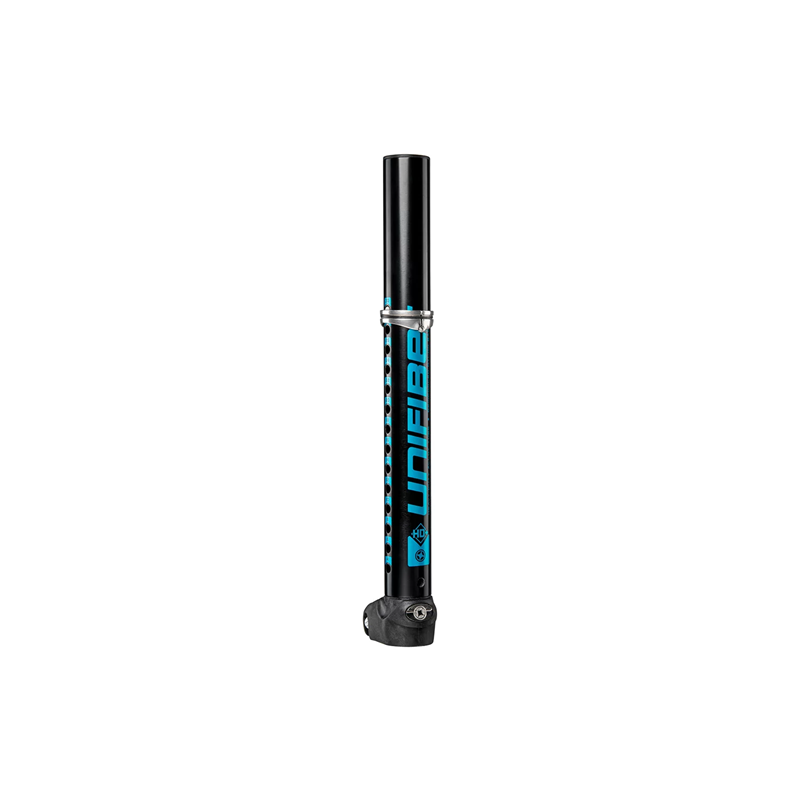

Unifiber HD+ SDM Aluminium Mast Extension (U-Pin) 2024

Description

Designed to survive under heavy load, the HD SDM+ extension is a quality piece of equipment in every racer’s arsenal.

Rigid and sturdy, all parts of the extension are toughened to give a piece of mind even in the gnarliest situations.

The main tube is manufactured from hardened T6 aluminium while the nylon base is fiber-reinforced. The connection between both parts is further fortified using a stainless steel insert.

The base features a 3-roll pulley that significantly reduced the effort required from the user to downhaul bigger sails sizes.

Pulley/cleat system orientation makes rigging easy and intuitive.

–
Specifications

SKU

UF030035075

Description

HD+ SDM Aluminium Mast Extension (U-Pin) 30

Mast Extension Range

4 – 30 cm

Baseplate Locking Mechanism

U-Pin Push Button

Mast Extension Barefoot Friendly Rigging

Yes

Mast Extension Collar

Stainless Steel «Slide & Lock»

Mast Extension Construction

Aluminium

Mast Extension Downhaul Ratio

8:1 – 3 pulleys

Mast Extension Graphics

Screenprinted

Mast Extension Maximum Length Setting (cm)

30

Mast Extension Minimal Length Setting

4 cm

Mast Extension Outside Tube Diameter

48 mm

Mast Extension Pulley Orientation

0 Degrees

Mast Extension Reinforcement

Aluminium

Mast Extension Rope Compatibility

3.8mm – 4.0mm

Mast Extension Rope Quality

Pre-stretched Polyester 4.0mm

Mast Extension Setting Steps (mm)

20

Mast Extension Wall Thickness

2.5 mm

Mast Extension Compatability

U-Pin

Mast Extensions Pulley Diameter

17 mm

Operating Weight

0.66 kg

Mast Extension Diameter

SDM

Master Carton Length

50 cm

Master Carton Width

50 cm

Master Carton Height

30 cm

Master Carton QTY

50

HS-Code

95062900

Volume

0.0015 m³
